Landscape lighting
6.1 Line light model YC-XT9780

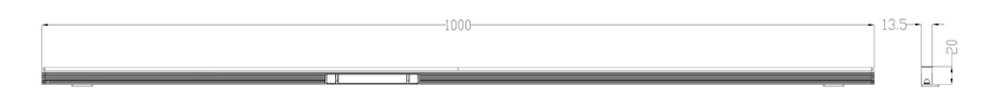

Product size
Product Features
1. Extremely narrow and minimalist lamp body, compact and exquisite, can be flexibly installed in extremely narrow slots or gaps;2. High end aluminum panel, professional optical design, uniform light mixing and ultra-high brightness;
3. Multiple appearance colors and installation methods can be selected according to the on-site conditions.
Specification parameters
Lighting parameters
|
Input power supply: DC24V |
Control method: ON-OFF/DMX512 |
|
Waterproof joint: 10mm diameter metal joint |
Working temperature:- 40°C ~55°C |
|
Lamp power: 12W |
Waterproof joint: 10mm diameter metal joint |
|
Pixel segment: 1 segment/8 segments |
Outgoing method: Bottom outgoing/Side outgoing |
|
Protection level: IP65 |
Wire specification: 2 * 1 square national standard rubber wire |
|
Lamp body material: aviation grade aluminum alloy |
Outgoing line length: 150mm |
|
Material of lampshade: aluminum panel |
Serial connection quantity: continuous serial connection of 24 meters |
|
Certification standards: GB7000.1-2015/GB7000.201-2008 |
|
Light source parameters
|
Color/Color Temperature: Monochrome/RGB/RGBW |
Chip: OSRAM/CREE |
|

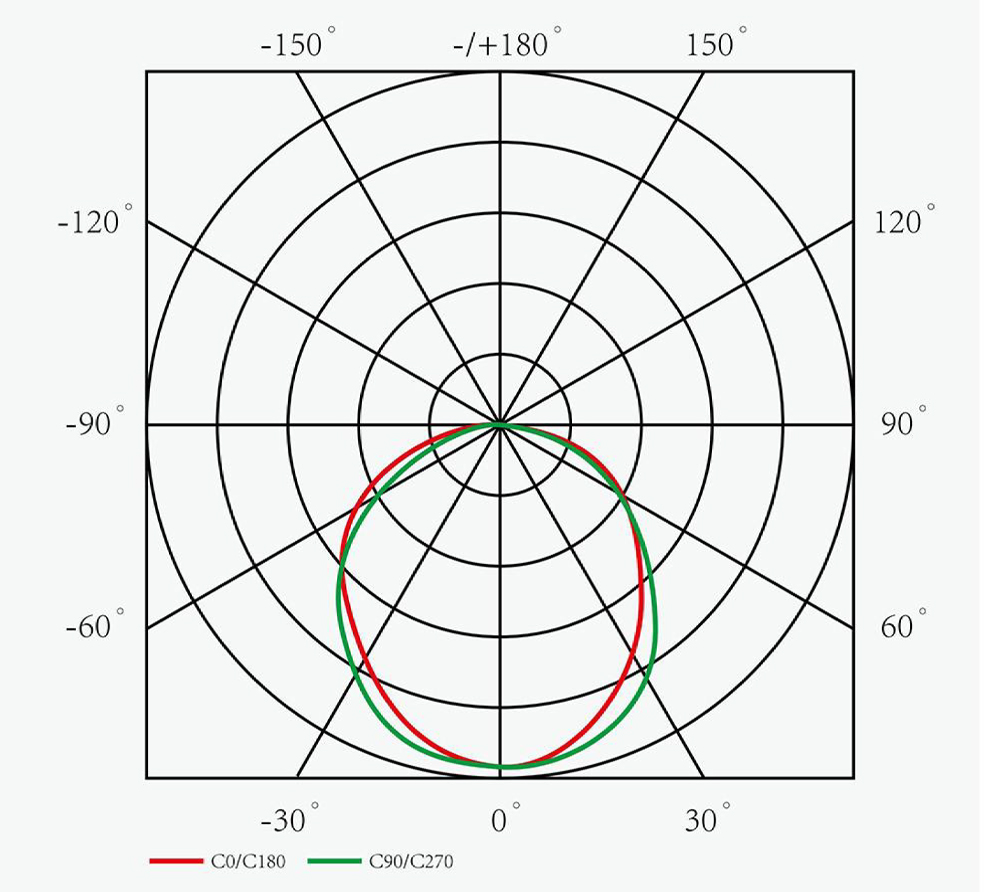

Beam angle: 120 ° |
Light source lifespan: ≥ 30000 hours |
