Subway and tunnel lighting

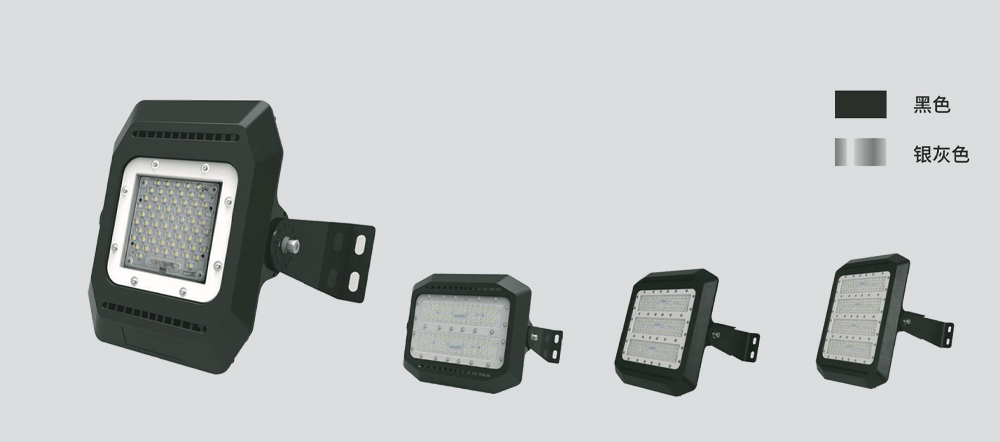

Subway and tunnel lighting YC-S526B
|
Product model |
Number of modules |
System power (W) |
Overall lighting effect (lm/W) |
Initial luminous flux (lm) |
|
YC-S526C1 |
1 |
20~40 |
120~130 |
2400~5200 |
|
YC-S526C2 |
1 |
30~60 |
110~120 |
3300~7200 |
|
YC-S526C3 |
2 |
80~120 |
120~140 |
9600~16800 |
|
YC-S526C4 |
3 |
120~180 |
120~140 |
14400~25200 |
|
YC-S526C5 |
4 |
180~240 |
120~140 |
21600~33600 |
Lamp characteristics
|
■Working voltage: AC100V-277V |
■LED lifespan:>50000 hours |
|
■Power efficiency: 87%~91% |
■Surge voltage: 10KV (common mode) |
|
■Power factor: 0.95 |
■Color temperature: 3000K, 4000K, 5000K, 5700K |
|
■Junction temperature:< 80℃ |
■ Light source: Lumileds |
|
■Color rendering index: Ra70 ± 5 |
■Lamp body and lamp shell material: metal material |
|
■ Work environment:- 40℃ ~+ 50° 10%~90%RH |
■Protection level: LED light source IP68, power supply IP67 |
|
■Storage temperature:- 40℃~+ 50°C |
