Road lighting

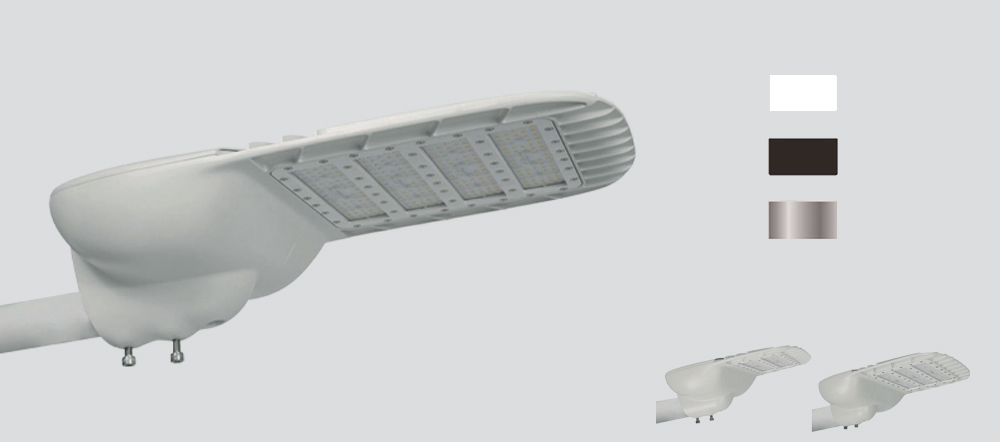

Road Lighting YC-L31
|
Product model |
Number of modules |
System power (W) |
Overall lighting effect (lm/W) |
Initial luminous flux (lm) |
|
YC-L31C |
2 |
80~120 |
120~170 |
9600~20400 |
|
YC-L31D |
3 |
120~180 |
120~170 |
14400~30600 |
|
YC-L31E |
4 |
160~240 |
120~170 |
19200~40800 |
Lamp characteristics
|
■Working voltage: AC100V-277V |
■LED lifespan:>50000 hours |
|
■Power efficiency: 92% |
■Surge voltage: 10KV (common mode) |
|
■Power factor: 0.95 |
■Color temperature: 3000K, 4000K, 5000K, 5700K |
|
■Junction temperature:< 80℃ |
■Light source: Lumileds |
|
■Color rendering index: Ra70 ± 5 |
■Installation diameter: ∅ 60±3mm |
|
■ Work environment:- 40℃ ~+ 50° 10%~90%RH |
■ Lamp body and lamp shell material: metal material |
|
■Storage temperature:- 40℃~+ 50°C |
■ Protection level: LED light source IP68, power supply IP66 |
