Road lighting

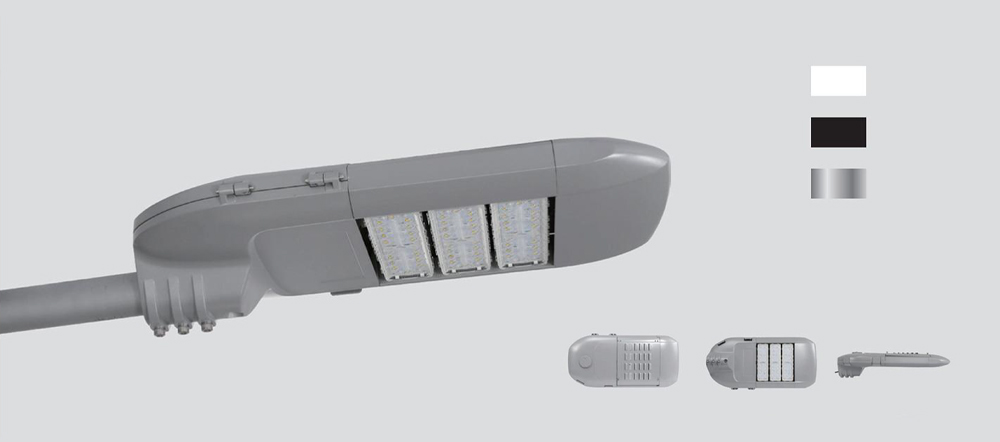

Road lighting YC-L130a
|
Product model |
Number of modules |
System power (W) |
Overall lighting effect (lm/W) |
Initial luminous flux (lm) |
|
YC-L130a |
1~7 |
40~420 |
120~170 |
4800~71400 |
Lamp characteristics
|
■Working voltage: AC100V-277V |
■LED lifespan:>50000 hours |
|
■Power efficiency: 91% |
■Surge voltage: 10KV (common mode) |
|
■Power factor: 0.95 |
■Color temperature:3000K，4000K，5000K，5700K |
|
■Junction temperature:< 80℃ |
■Light source: Lumileds |
|
■Color rendering index: Ra70 ± 5 |
■Installation diameter: ∅ 43~45mm/∅60+3mm |
|
■Work environment:- 40℃ ~+ 50° 10%~90%RH |
■Lamp body and lamp shell material: metal material |
|
■Storage temperature:- 40℃~+ 50°C |
■Protection level: LED light source IP68, power supply IP66 |
