Road lighting

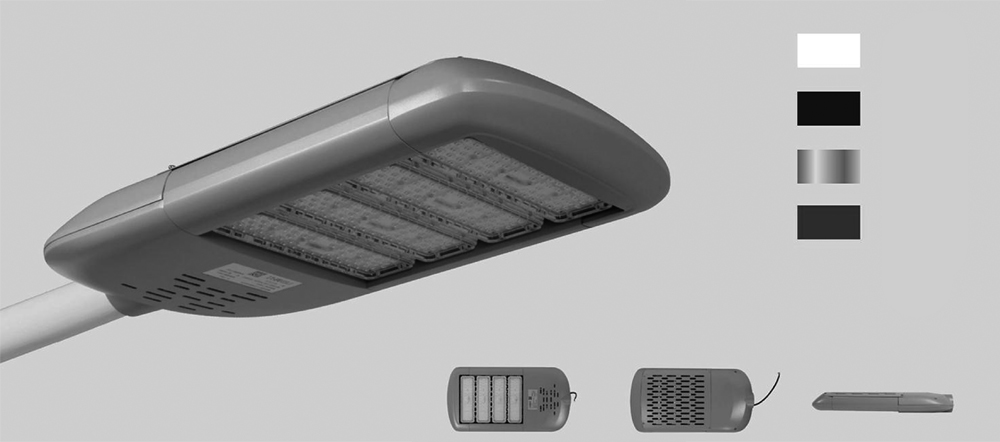

Road lighting YC-L30A
|
Product model |
Number of modules |
System power (W) |
Overall lighting effect (lm/W) |
Initial luminous flux (lm) |
|
YC-L30A |
1~4 |
40~240 |
120~170 |
4800~40800 |
Lamp characteristics
|
■Working voltage: AC100V-277V |
■LED lifespan:>50000 hours |
|
■Power efficiency: 91% |
■Surge voltage: 10KV (common mode) |
|
■Power factor: 0.95 |
■Color temperature: 3000K, 4000K, 5000K, 5700K |
|
■Junction temperature:< 80℃ |
■Light source: Lumileds |
|
■Color rendering index: Ra70 ± 5 |
■ Installation diameter: ∅ 60+3mm |
|
■Work environment:- 40°℃ ~+ 50°10%~90%RH |
■Lamp body and lamp shell material: metal material |
|
■Storage temperature:- 40°℃~+ 50°C |
■Protection level: LED module IP68, power supply IP67 |
